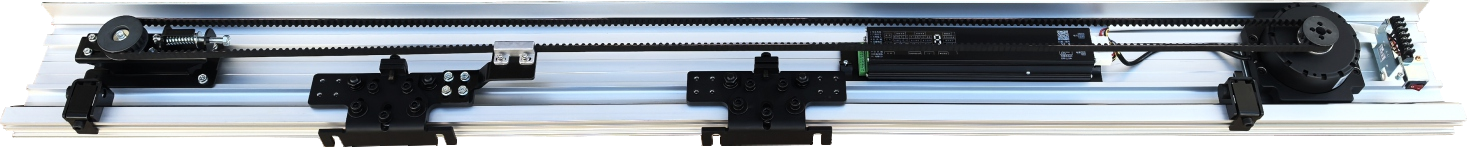

CE Certified Automatic Sliding Door Mechanism 125B


    Operated by receiving signals from sensors, the door moves
  • automatically and it will reverse back once there is any objects
  • between the door leaves and with safety sensor installed at
  • both sides to enhance the safety;
  • And easy to install;
  • EMAIL   INQUIRY

Technical Specification

Parameter

DE-125B

Range of the Door

Single-leaf

Double-leaf

Door Leaf max Weight

150kg

130kg x 2

Door Width

650-1250mm

650-1250mm

Installation Type

Surface Mounting

Max Door Leaf Thickness

50mm

Motor

DC24V, 65W

Power Supply

AC110-240V, 50-60 Hz

Input Current (Standby)

0.095A

Input Current(Operation)

1.6A

Opening Speed

450-750mm/s (adjustable)

Closing Speed

450-750mm/s (adjustable)

Creep Speed

30-100mm/s (adjustable)

Hold-open Time

0-20s (adjustable)

Hold-Close Force

70N<f<220N

Manual Pushing Force

<120N

Power Consumption

<150W

Ambient Temperature

-20+50
