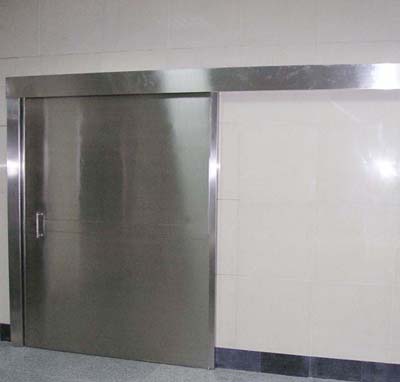

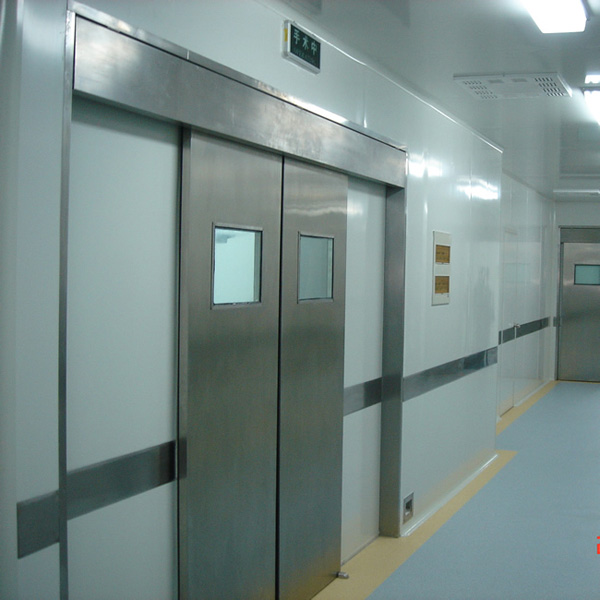

Operating theatre medical door
-
Patented power beam transmission strength technology.When the door
- leaf is closed to the right place, the door leaf will slightly shift to the
- door frame and ground.The rubber pads that arranged on the four
- sides of the door leaf will suppress the door leaf and ground to make
- sure the air tightness.
-
Technical Specifications:
Specification | Light Duty | Heavy Duty | ||||
Rang of the Door | Single-Leaf | Double-Leaf | Single-Leaf | Double-Leaf | ||
Door leaf max weight | 100kg | 100kg x 2 | 200kg | 200kg x 2 | ||
Mounting Method | Surface mounting or built-in mounting | |||||
Open Width | 700-2000mm | 650-2000mm | 750-2000mm | 650-2000mm | ||
Power Supply | AC 90-260V, 50-60 Hz | |||||
Opening Speed | 300-550mm/s (adjustable) | |||||
Closing Speed | 250-550mm/s (adjustable) | |||||
Creep speed | 30-100mm/s (adjustable) | |||||
Hold-open time | 0.5-20s (adjustable) | |||||
Airproof Force (Max.) | ＞70N | |||||
Manual Pushing Force | <100N | |||||
Electronic Lock Force | ＞800N | |||||
Power consumption | 150W | |||||
Ambient temperature | -20+50 C | |||||
